Specialty Gases
Precision Etching Gas for Advanced Electronics Manufacturing
Nitrogen trifluoride (NF₃) is a stable, non-flammable Specialty Gas engineered for high-performance plasma processes in critical electronics production. NF₃ is used as a chamber cleaning gas in the manufacture of semiconductors, flat panel displays and other electronic devices. As a low-residue fluorine source, it enables ultra-clean manufacturing with reduced environmental impact compared to legacy gases.
YIGAS is a nitrogen trifluoride gas supplier providing 99.99% and 99.996% high-purity NF₃ for semiconductor, flat panel display and thin-film photovoltaic manufacturing. For semiconductor fabs, display manufacturers, photovoltaic equipment users and electronic specialty gas distributors, purchasing NF₃ requires more than comparing purity and price per kilogram. The supplier must also demonstrate stable impurity control, compatible cylinder preparation, batch traceability, reliable recurring supply and practical support for dangerous-goods transportation.
| CAS No. | 7783-54-2 |
| UN No. | 2451 |
| EINECS No. | 232-007-1 |
| Molecular weight | 71.0019 |
| Appearance | Colourless, odourless |
| Melting point | -206.79℃ |
| Boiling point | -129.0℃ |
| Density | 2.96kg/m3 |
| DOT Class | 2.2 & 5.1 |
| Label | Non-flammable Gas, Oxidizing Agent |
| Industrial Grade NF3 | Industrial Grade NF3 | |
| Specification | 99.99% | 99.996% |
| CF4 | ≤40 ppm | ≤20 ppm |
| N2 | ≤10 ppm | ≤5 ppm |
| O2+AR | ≤5 ppm | ≤3 ppm |
| CO | ≤1 ppm | ≤1 ppm |
| CO2 | ≤3 ppm | ≤0.5 ppm |
| N2O | ≤3 ppm | ≤1 ppm |
| SF6 | ≤3 ppm | ≤2 ppm |
| H2O | ≤1 ppm | ≤1 ppm |
| Express as HF | ≤1 ppm | ≤1 ppm |

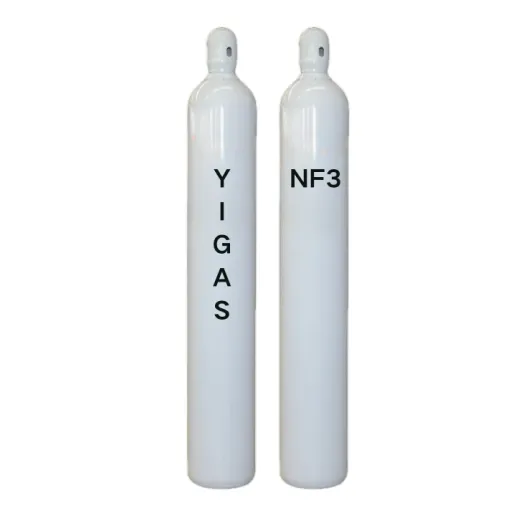

| Cylinder Option | Valve | NF₃ Net Weight | Typical Use |
| 47L Cylinder | CGA640 | 22 kg | Standard commercial supply |
| 43L DOT Cylinder | CGA640 | 20 kg | DOT cylinder requirement and export projects |
Both configurations are intended for compressed NF₃ gas supply.
Before ordering, the customer should confirm:
Cylinder standard
Cylinder water capacity
Net filling weight
Valve connection
Valve orientation
Gas cabinet compatibility
Regulator compatibility
Customer label requirements
Barcode or serial-number requirements
Pallet configuration
Cylinder ownership
Empty-cylinder return method
The current page should not describe NF₃ as available in a dewar unless a separately engineered cryogenic supply system has been confirmed. Standard commercial supply is normally based on approved compressed-gas cylinders or other specifically qualified pressure containers.
Nitrogen trifluoride is nonflammable but can act as an oxidizing gas and becomes highly reactive under plasma, heat or decomposition conditions.
General precautions include:
Store cylinders in a secure, dry and ventilated location.
Keep cylinders away from heat and direct sunlight.
Separate NF₃ from flammable gases and incompatible materials.
Secure cylinders vertically.
Use CGA640-compatible equipment where applicable.
Use regulators, valves and piping approved for NF₃ service.
Keep oil, grease and combustible contaminants away from gas connections.
Prevent moisture from entering the gas delivery system.
Leak-test the connection before introducing gas.
Use suitable gas cabinets and ventilation.
Install gas monitoring where required by the risk assessment.
Purge process lines according to the approved operating procedure.
Maintain suitable exhaust and abatement systems.
Follow the current SDS and local safety regulations.
Train personnel in oxidizing-gas and emergency-response procedures.
Under high-energy or decomposition conditions, NF₃ can form hazardous fluorine-containing species. Emergency planning must account for the product itself and potential decomposition byproducts.
YIGAS offers both 99.99% and 99.996% nitrogen trifluoride, allowing customers to select a specification based on process sensitivity and impurity requirements.
The published specification includes CF₄, N₂, O₂ + Ar, CO, CO₂, N₂O, SF₆, H₂O and acidity expressed as HF.
This provides more useful purchasing information than a headline purity value alone.
NF₃ is available in:
47L cylinders with 22 kg net filling weight
43L DOT cylinders with 20 kg net filling weight
CGA640 valve connection
YIGAS supplies industrial and specialty gases for semiconductor, electronics, laboratory and advanced manufacturing applications.
Established in 1993, YIGAS has more than 30 years of gas-industry experience and operates multiple production bases supporting industrial and specialty gas supply.
YIGAS continues to invest in high-purity electronic gas production, purification, packaging and supporting infrastructure.
Multi-cylinder shipments, forecast-based deliveries and annual supply requirements can be evaluated for semiconductor, display and photovoltaic customers.
Production, filling, analysis and shipment information can be managed according to the agreed quality and documentation requirements.
YIGAS reviews cylinder standards, dangerous-goods documents, packaging and transportation routes for international projects.
In industries where even microscopic contamination can affect millions of dollars in output, your gas supplier matters.
With YIGAS, you gain a trusted NF₃ gas supplier that delivers:
High purity
Stable supply
Global logistics support
Whether you need electronic-grade NF₃ or bulk supply solutions, we are ready to support your operations with precision and reliability.
Contact YIGAS today to request a quote, discuss your technical requirements, and secure a dependable Nitrogen Trifluoride gas supply partner.
The electronics industry requires ultra-high purity gases and specialty gases for use in semiconductors, flat panel displays, and photovoltaics. YIGAS provides nitrogen, argon, helium, sulfur hexafluoride, and nitrogen trifluoride to meet customers' stringent requirements in cleaning, etching, atmosphere protection, and testing.
Decomposition Hazard: Forms HF above 250°C (OSHA PEL: 10 ppm TWA).
Available in cylinder, dewar
Traceable SDS and DOT/IMDG-certified transport solutions.
Q1. What is nitrogen trifluoride used for?
Q2. Do you supply high-purity NF₃ for electronics?
Q3. How is NF₃ gas packaged?
Q4. Is nitrogen trifluoride toxic or flammable?
Q5. What is the global price of NF₃ gas per kg or per cylinder?
Q6. What are the storage requirements for NF₃ cylinders?
Q7. What are the environmental concerns of NF₃?
Q8. What certifications do your NF₃ products comply with?
