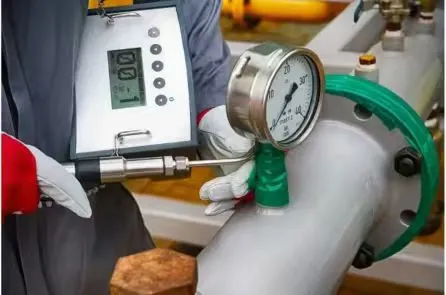

Helium vs Hydrogen for Leak Detection Applications

Leak detection is one of the most critical quality assurance steps in precision manufacturing. Whether the application is a semiconductor process chamber, an automotive fuel system, a medical implant, or a refrigeration circuit, the choice of tracer gas determines the sensitivity of the test, the safety of the work environment, the cost of the operation, and the regulatory compliance of the result.

For decades, helium has been the default tracer gas for high-sensitivity leak testing, and for many applications it remains irreplaceable. But the repeated global helium supply crises — including the 2026 Qatar Ras Laffan facility closure that removed approximately one-third of global supply overnight — have forced engineers across industries to take a serious technical look at hydrogen-based alternatives. In many production environments, that analysis is revealing that a 5% hydrogen / 95% nitrogen forming gas mixture delivers adequate sensitivity at a fraction of the cost, with acceptable safety management through ISO 10156-compliant handling procedures.

This guide provides a technically grounded, application-specific comparison of helium and hydrogen tracer gases, so that procurement managers, process engineers, and quality teams can make the right choice for their specific operating environment.

How Tracer Gas Leak Detection Works

In tracer gas leak testing, a known gas is introduced into a test component under pressure. A sensitive detector — positioned outside the component, or inside a test chamber surrounding it — identifies the presence of the tracer gas that has permeated through any leak path. The leak rate is quantified in units of mbar·L/s, describing the volume of gas escaping per unit time at a given pressure differential.

The physics that make a gas effective as a tracer are the same properties that govern why helium and hydrogen dominate the application:

✓ Small molecular size — allows the gas to penetrate even micro-scale leak paths that would block larger molecules

✓ Low atmospheric background concentration — minimizes false-positive readings from ambient air

✓ High detector selectivity — mass spectrometers and catalytic sensors can identify the tracer gas against background gases with high signal-to-noise ratio

✓ Chemical compatibility — the tracer gas must not react with, contaminate, or damage the test component or surrounding materials

Both helium and hydrogen satisfy the first criterion. They diverge significantly on all the others, and those differences define which gas belongs in which application.

Helium for Leak Detection: Capabilities and Constraints

Why Helium Became the Industry Standard

Helium's dominance in precision leak testing is grounded in a combination of physical and practical properties that remain unmatched for ultra-sensitive applications:

✓ Complete chemical inertness — helium does not react with any material, making it universally safe on metals, polymers, elastomers, and electronic components

✓ Very low atmospheric background (~5.2 ppm) — helium mass spectrometers operate in an environment where the natural signal is predictably low and stable

✓ Ultra-high detection sensitivity — helium mass spectrometry achieves minimum detectable leak rates of 1 × 10⁻¹² mbar·L/s, the highest sensitivity available for any tracer gas method

✓ Established standards base — ASTM E493, ASTM E498, ISO 20485, MIL-STD-202, and numerous OEM qualification specifications mandate helium testing by name

These properties make helium the only acceptable tracer gas for applications where leak rates must be quantified in the range of 10⁻⁸ mbar·L/s or below — including hermetic sealing of medical implants, semiconductor chamber qualification, aerospace pressure vessel certification, and vacuum system leak mapping.

Where Helium's Constraints Become Operationally Significant

Despite its technical superiority, helium leak testing carries two structural constraints that are now forcing a reassessment in many production environments:

✓ Supply volatility and cost: Helium is a non-renewable byproduct of natural gas extraction, concentrated in a small number of geographic regions. Shortage events — now recurring with enough regularity that the industry refers to "Helium Shortage 4.0" — have produced price spikes of 100–250% within single quarters. For high-volume production testing, helium procurement can represent a six- to seven-figure annual operating cost.

✓ Recovery infrastructure: To make helium economically viable on high-throughput production lines, manufacturers typically install helium recovery systems — compressors and membrane separation units that recapture exhaust gas for reuse. These systems represent significant capital expenditure, require ongoing maintenance, and introduce an additional failure point in the production line.

Hydrogen for Leak Detection: How the Technology Works

Forming Gas: The Safety-Compliant Hydrogen Solution

The primary barrier to hydrogen adoption in leak testing has historically been its flammability: hydrogen ignites in air at concentrations between 4.0% and 75.0% by volume. However, this risk is effectively eliminated by using forming gas — a mixture of 5% hydrogen in 95% nitrogen, classified as non-flammable under ISO 10156:2017 because the hydrogen concentration falls below the 5.5% flammability threshold defined by the standard.

Forming gas is also commonly referred to as "P-5" or "H-5" in industrial gas catalogues. It is produced by certified gas suppliers with documented blend accuracy, shipped in standard high-pressure cylinders, and handled under the same safety regime as other industrial gas mixtures. No special explosion-proof infrastructure is required beyond adequate ventilation, which is standard practice in any gas-using production environment.

Detection Technology for Hydrogen Tracer Gas

Hydrogen leak detection systems use catalytic sensors, semiconductor sensors, or thermal conductivity detectors rather than the quadrupole mass spectrometers used for helium. These instruments:

✓ Cost approximately 5–15 times less than helium mass spectrometer systems, depending on configuration and features.

✓ Require less complex installation and calibration infrastructure

✓ Provide adequate sensitivity for production-line rejection thresholds in the 10⁻⁴ to 10⁻⁶ mbar·L/s range

✓ Are compatible with the hydrogen economy's growing standardization base under IEC 62282 and related codes

The critical limitation is sensitivity: the best hydrogen detection systems reach approximately 5 × 10⁻⁷ mbar·L/s minimum detectable leak rate. This is five orders of magnitude less sensitive than helium mass spectrometry. For applications where leaks must be detected and quantified at 10⁻⁸ mbar·L/s or below, hydrogen is not technically viable.

Physical and Operational Properties: Side-by-Side Comparison

The following table summarizes the key properties of helium and forming gas (5% H₂/95% N₂) across the dimensions most relevant to leak detection application engineering.

* Forming gas classification per ISO 10156:2017. Sensitivity data based on mass spectrometer (He) and catalytic sensor (H₂) technology. Cost estimates represent 2025 market conditions.

Safety Considerations: Addressing the Flammability Question

The most common concern raised by plant safety managers when evaluating hydrogen tracer gas is flammability. This concern is valid for pure hydrogen but does not apply to forming gas when handled according to the standard's requirements.

ISO 10156 Classification

ISO 10156:2017 establishes the method for determining whether a gas mixture is flammable. A mixture containing 5% H₂ in N₂ is classified as non-flammable under ISO 10156:2017, as the hydrogen concentration remains below the threshold that would render the mixture ignitable under standard test conditions.

Practical Safety Management

Facilities transitioning to forming gas should implement the following baseline safety practices:

✓ Area ventilation to prevent localized hydrogen concentration above 1% (approximately 25% of the Lower Explosive Limit)

✓ Fixed hydrogen gas detectors at floor level and in test enclosures, with alarm setpoints at 10% and 25% LEL

✓ Standard industrial gas cylinder handling: secured upright storage, valve protection caps, and segregation from oxidizing gases

✓ Personnel training on forming gas properties, ISO 10156 classification, and emergency procedures

By contrast, helium presents no flammability risk, but its simple asphyxiation hazard in confined spaces is frequently underestimated. Helium leaks into enclosed test chambers can displace oxygen without generating any sensory warning, requiring oxygen monitoring in enclosures where significant helium volumes are handled.

Cost Analysis: The Economic Case for Hydrogen in High-Volume Testing

The economics of tracer gas selection are driven by three cost categories: gas supply, detection equipment, and recovery infrastructure. Across all three, forming gas delivers a compelling operational cost advantage for applications where its sensitivity ceiling is sufficient.

Estimated Annual Gas Cost Comparison by Production Volume

The following estimates are based on 2024–2025 industrial gas pricing. Actual costs vary by region, contract structure, and supplier. Helium costs include allowance for partial recovery; forming gas costs assume no recovery system.

* Estimates based on 2024–2025 industrial gas pricing, 8-hour production day, standard test cycle times. Helium costs include partial recovery allowance. Forming gas costs exclude recovery infrastructure.

CapEx Considerations

Recovery systems for helium — necessary to manage operating costs on high-throughput lines — typically represent significant capital expenditure in compressors, membrane separation units, and monitoring infrastructure. These systems also require scheduled maintenance, introduce production line dependencies, and must be factored into total cost of ownership calculations. Forming gas requires none of this infrastructure: because the gas cost is low and nitrogen/hydrogen venting has no environmental restriction, the exhaust can be released directly.

Application-Specific Selection Guide

The correct tracer gas choice is application-specific. The table below maps industries and use cases to the recommended tracer gas based on sensitivity requirements, material compatibility, and regulatory constraints.

Decision Framework: Choosing Between Helium and Hydrogen

Choose Helium When

✓ The application requires a minimum detectable leak rate below 1 × 10⁻⁶ mbar·L/s

✓ The test specification is mandated by a standard or OEM qualification that names helium (ASTM F2391, MIL-STD-202, ISO 20485, etc.)

✓ The test component contains high-strength steels or hydrogen-embrittlement-susceptible alloys

✓ The application involves reactive process environments where even trace hydrogen is unacceptable (e.g., oxidizer systems, semiconductor chambers)

✓ The test component will subsequently be used in a cryogenic or vacuum environment where residual gas trapping must be minimized

Choose Forming Gas (5% H₂ / 95% N₂) When

✓ The production rejection threshold is in the range of 10⁻⁴ to 10⁻⁶ mbar·L/s — typical for HVACR, automotive, and general industrial components

✓ High test throughput (hundreds to thousands of units per day) makes helium cost prohibitive, even with recovery

✓ The facility is already handling hydrogen or hydrogen mixtures for other processes, simplifying safety and training requirements

✓ The application involves hydrogen fuel systems, where testing with hydrogen eliminates tracer-gas cross-contamination risks

✓ Sustainability or ESG reporting objectives create a preference for lower-cost, renewable, non-critical-mineral inputs

Consider a Two-Gas Strategy When

Some high-volume applications benefit from a staged approach: forming gas for rapid initial survey scanning across large surface areas or weld lines, followed by helium pinpointing for precise leak location and quantification at identified defect sites. This approach can reduce helium consumption by 60–80% compared to helium-only testing on the same components, while maintaining the sensitivity required for final acceptance documentation.

Purity Requirements for Leak Detection Gases

Whether using helium or hydrogen tracer gas, the purity grade of the supplied gas directly affects detector signal quality and test repeatability. Impurities in the tracer gas stream can saturate or confuse sensors, introduce false positives from reactive contaminants, and in helium mass spectrometry, create background noise that masks genuine leak signals.

Recommended Purity Grades

✓ Helium for precision leak testing: minimum 4N (99.99%); advanced applications including semiconductor tool qualification require 5N (99.999%) or 6N (99.9999%)

✓ Forming gas for industrial production leak testing: nitrogen carrier minimum 99.9% purity; hydrogen blend accuracy ±0.5% of nominal

✓ Both gases should be supplied with a batch-level Certificate of Analysis (COA) specifying moisture content, oxygen, and residual hydrocarbon levels

Moisture contamination (H₂O) is the most common purity failure mode in leak detection gases. Even at ppm levels, moisture can deposit on detector membranes, reduce sensor response time, and introduce measurement drift. Specified moisture limits for leak detection grades should be < 10 ppm for standard applications and < 1 ppm for high-sensitivity helium mass spectrometer work.

Conclusion

Helium and hydrogen serve different points on the leak detection sensitivity-cost spectrum, and the right choice depends entirely on the application's technical requirements, regulatory environment, and operational economics.

Helium remains the only viable tracer gas for applications demanding detection below 10⁻⁶ mbar·L/s, for hermetic sealing verification in medical devices and aerospace systems, and wherever international standards mandate it by name. Its physical inertness and established standards base are irreplaceable advantages in these contexts.

Forming gas (5% H₂/95% N₂) is an operationally sound, cost-effective, and technically adequate alternative for the broad range of production-line leak testing applications in HVACR, automotive, general industrial, and hydrogen infrastructure manufacturing — where sensitivity requirements sit comfortably within the 10⁻⁴ to 10⁻⁶ mbar·L/s range and where the economics of high-volume testing make the helium cost premium increasingly difficult to justify.

In both cases, the performance of the tracer gas in service depends critically on the purity and consistency of the gas supply. A well-specified, batch-certified tracer gas from a qualified supplier is as important as the detector technology in achieving reliable, repeatable leak test results.
