Helium Supply Strategies for Semiconductor Manufacturing: Purity, Reliability, and Scale

Helium is one of the most critical specialty gases in modern semiconductor manufacturing. It cools superconducting magnets in ion implantation systems, purges EUV lithography chambers, and acts as a precision carrier gas in CVD and ALD processes. Despite its invisibility on the wafer, helium underpins the physical integrity of nearly every advanced node process step.

Yet helium is also a finite resource. Produced primarily as a byproduct of natural gas extraction and sourced from a small number of global regions, it is uniquely vulnerable to supply disruptions. An unplanned helium outage in a leading-edge fab can halt production within hours and cost hundreds of thousands of dollars per day.

This article addresses the three dimensions every procurement and process engineering team must master: selecting the correct purity grade, building a resilient supply chain, and scaling delivery to match fab throughput.

Why Helium Purity Is Non-Negotiable in Wafer Fabrication

Helium purity is expressed as the percentage of actual helium in the gas stream, with the remainder comprising trace impurities. These are classified using N-grade notation: 5N equals 99.999% purity (10 ppm impurity); 6N equals 99.9999% (1 ppm impurity).

In semiconductor processes, even sub-ppm contamination has measurable consequences:

✓ Oxygen (O₂) — oxidizes silicon and copper interconnect surfaces, causing barrier layer defects and electromigration failures

✓ Moisture (H₂O) — fogging EUV optics and causing photoresist adhesion failures above 0.5 ppm

✓ Carbon dioxide (CO₂) — absorbs 13.5nm EUV wavelengths, reducing scanner transmission and throughput

✓ Total hydrocarbons (THC) — incorporate into dielectric films during CVD/ALD, degrading k-values and increasing leakage

For advanced node processes at 5nm and below, the minimum acceptable grade for process-critical applications is 5.5N (99.9995%). EUV lithography tools increasingly mandate 6N (99.9999%).

Helium Purity Grades and Semiconductor Applications

* H₂O and O₂ limits shown. N₂ limits: ≤ 3 ppm at 5.5N; ≤ 0.5 ppm at 6N. THC limits follow same scale as O₂.

Helium in Advanced Lithography: EUV and DUV Roles

EUV Lithography — The 6N Requirement

EUV scanners operate with 13.5nm-wavelength light that is absorbed by virtually every atmospheric molecule. Helium at 6N purity or above serves two functions inside the scanner:

✓ Purge gas — maintaining a low-absorption atmosphere within the optical column around multilayer mirrors

✓ Wafer thermal coupling — controlling wafer temperature within ±0.1°C on the electrostatic chuck during exposure

Any moisture or CO₂ spike above 0.1 ppm in the purge stream can be absorbed by the EUV light, triggering the tool's optical monitoring system. This leads to an automatic interlock and requires an unscheduled mirror cleaning or tool qualification cycle — typically resulting in 24–72 hours of lost production.

DUV and Process Chamber Applications

193nm ArF immersion lithography tools require 5N to 5.5N helium for optical purge and thermal management. Beyond lithography, helium at 5N grade serves as:

✓ Inert atmosphere in epitaxial growth reactors

✓ Carrier gas in MOCVD systems for compound semiconductors (power devices, RF chips)

✓ Purge gas in ALD chambers to prevent cross-contamination between precursor pulses

Building a Failure-Proof Helium Supply Strategy

Global helium supply is structurally concentrated in a small number of large liquefaction plants across the United States, Qatar, Russia, and Algeria. Geopolitical events, plant outages, or LNG terminal congestion can trigger regional shortages within weeks. A sound helium supply strategy rests on three pillars:

Strategic Buffer Storage

Industry best practice calls for a minimum 30-day helium buffer on site, with leading-edge fabs targeting 60–90 days for EUV-critical processes. Liquid helium for superconducting magnet applications requires cryogenic storage below -269°C (4.2 K), with automated boil-off management to minimize evaporative loss.

Multi-Source Procurement

A single-supplier strategy introduces unacceptable concentration risk. Procurement contracts with at least two independent suppliers drawing from different source fields should specify:

✓ Guaranteed minimum monthly delivery volumes with force majeure provisions

✓ Batch-level Certificate of Analysis (COA) covering the full impurity panel

✓ Emergency allocation clauses for priority customers during shortage events

✓ Unified purity specifications across all qualified suppliers

Logistics Redundancy

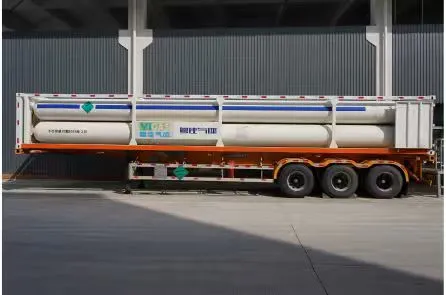

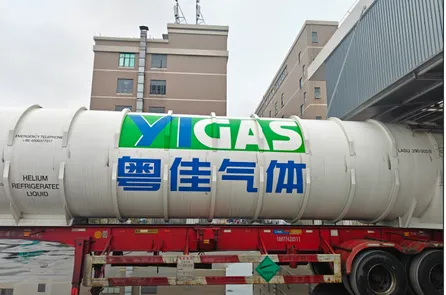

Liquid helium is delivered by vacuum-insulated tanker trucks or ISO containers. Fabs should pre-negotiate priority delivery agreements with multiple carriers, stagger delivery schedules to avoid simultaneous source dependency, and integrate real-time inventory monitoring with ERP-triggered reorder points.

Helium Supply Mode Comparison

Balancing Cost-Efficiency with High-Volume Demand

Ultra-high-purity liquid helium is priced in the range of USD 10–20 per cubic meter (gaseous equivalent) depending on grade and contract structure. A 300mm EUV fab may consume 5,000–20,000 m³/month, placing helium procurement among the largest specialty gas line items in fab operating budgets.

Bulk vs. Cylinder Economics

Bulk liquid delivery offers the lowest unit cost for fabs consuming more than approximately 3,000 m³/month. The capital investment in cryogenic storage infrastructure is typically recovered within 18–36 months through the unit price differential against cylinder supply.

Helium Recovery as a Long-Term Hedge

On-site helium recovery systems — capturing boil-off gas from superconducting magnets and cryogenic tools for re-purification — can reclaim 15–35% of total consumption. With the actual rate depending on the purity of the captured stream and the density of helium-using tools. Highly localized closed-loop systems can achieve significantly higher rates. At current prices, such systems generate payback periods of 3–7 years and simultaneously reduce the fab's exposure to spot market volatility.

Future Outlook: Recovery Infrastructure and Next-Generation Requirements

Semiconductor industry helium demand is projected to grow through 2030, driven by the proliferation of EUV scanners at 3nm and below, expansion of compound semiconductor production, and the growth of quantum computing research requiring millikelvin cryogenic environments.

New source development in Tanzania, Canada, and the United States is expected to gradually ease the structural supply deficit — but commercial-scale liquefaction capacity from these fields is unlikely to be available before 2027. In the interim, fabs that have invested in closed-loop recovery infrastructure and multi-source procurement will carry a significant operational advantage over those relying on spot market access.

Tool OEM specifications are also tightening. Next-generation EUV platforms entering qualification for sub-2nm patterning are expected to require 6N+ helium with tighter individual impurity limits on moisture and metallic traces than current 6N specifications mandate. Gas suppliers and fab materials engineering teams must develop collaborative qualification pathways that go beyond standard COA verification.

Conclusion

Helium supply strategy is a core operational competency for any semiconductor fab competing at advanced nodes. Selecting the correct purity grade protects yield. Building a resilient, multi-source supply chain protects uptime. Scaling delivery infrastructure — from bulk cryogenic logistics to on-site recovery — protects long-term cost efficiency.

For businesses seeking a reliable source of ultra-high-purity helium for semiconductor manufacturing, YIGAS provides stable supply solutions across 5N, 5.5N, and 6N grades, with strict batch-level quality control, customized bulk and cylinder logistics, and a global supply chain network designed to keep fabs running without interruption. Contact our semiconductor gas specialists to build a supply strategy engineered for your process requirements.
