Helium is one of the most widely used noble gases in modern industry. From welding and leak detection to semiconductor manufacturing and scientific research, the purity level of helium gas directly determines whether a process will run reliably and efficiently.
However, many buyers encounter confusion when selecting helium grades because suppliers offer multiple purity levels such as 99.9%, 99.99%, 99.999%, and even 99.9999%.
Choosing a purity level that is too low may lead to contamination, unstable processes, or product defects. On the other hand, selecting ultra-high purity helium unnecessarily can significantly increase procurement costs without delivering meaningful benefits.
This guide explains the industrial helium purity grades from 99.9% to 99.9999%, their typical applications, impurity limits, and how to choose the right specification for your operation.
Understanding Helium Purity Levels
Helium purity refers to the percentage of helium contained in the gas mixture, with the remaining portion consisting of trace impurities such as nitrogen, oxygen, hydrogen, moisture, hydrocarbons, or carbon dioxide.
Examples of helium purity:
✓ 99.9% purity helium means 0.1% impurities (1000 ppm)
✓ 99.999% purity helium means only 10 ppm impurities
✓ 99.9999% purity helium means as little as 1 ppm impurities
These impurities may appear insignificant, but in precision manufacturing environments, even a few ppm can impact results.
Typical impurities found in industrial helium include:
✓ Nitrogen (N₂)
✓ Oxygen (O₂)
✓ Hydrogen (H₂)
✓ Carbon monoxie (CO)
✓ Carbon dioxide (CO₂)
✓ Moisture (H₂O)
✓ Hydrocarbons (CH₄, etc.)
Overview of Helium Gas Purity Grades
Industrial helium is generally classified into several standard purity grades.
| Helium Purity | Typical Name | Impurity Level | Common Uses |
|---|---|---|---|
| 99.9-99.99% | Industrial Grade | ≤1000 ppm | Welding shielding, balloons, leak testing |
| 99.999% | High Purity | ≤100 ppm | HVAC leak detection, refrigeration systems |
| 99.9999% | Ultra High Purity (UHP) | ≤10 ppm | Electronics manufacturing, laboratories |
Understanding these grades helps buyers select a cost-effective helium specification without compromising process quality.
99.9%~99.99% Helium(Industrial Grade)
Helium with 99.9%–99.99% purity is commonly referred to as three-nines to four-nines helium, widely used in general industrial applications.
Typical Applications
✓ HVAC leak detection
✓ Refrigeration system testing
✓ Gas chromatography carrier gas
✓ Mass spectrometry analysis
✓ Controlled atmosphere processes
✓ Analytical laboratories
✓ Semiconductor manufacturing
✓ LED and photovoltaic production
✓ Optical fiber and fiber optic fabrication
Higher purity helium improves measurement accuracy, reduces background noise, and ensures stable performance in precision industrial and laboratory environments.
In welding processes such as GTAW (TIG welding) and GMAW (MIG welding), helium improves heat transfer and weld penetration.
Advantages
✓ Balanced cost and performance for industrial and analytical use
✓ Lower moisture and oxygen contamination
✓ Reliable for industrial testing environments
✓ Suitable for high-precision manufacturing processes
Helium Roles in Semiconductor Fabrication
✓ Plasma processing environment control
✓ Cooling gas in wafer processing tools
✓ Carrier gas for deposition systems
99.999% Helium (High Purity Grade)
Helium with 99.999% purity, often called five-nines helium.
Typical Applications
✓ HVAC leak detection
✓ Refrigeration system testing
✓ Gas chromatography carrier gas
✓ Controlled atmosphere processes
✓ Fiber optic production
Higher purity helium improves measurement accuracy and reduces background noise.
Advantages
✓ Balanced cost and performance
✓ Lower moisture and oxygen contamination
✓ Reliable for industrial testing environments
99.9999% Helium (Ultra High Purity)
Helium with 99.9999% purity represents one of the highest purity levels commercially available.
Typical Applications
✓ Semiconductor lithography processes
✓ Particle accelerators
✓ Cryogenic systems
✓ Advanced scientific research
✓ Ultra-sensitive analytical instruments
How to Choose the Right Helium Purity
1. Process Sensitivity
✓ Semiconductor manufacturing → 99.999% or higher
✓ Analytical instruments → 99.999%
✓ Welding or balloons → 99.9-99.99%
2. Regulatory or Industry Standards
✓ Semiconductor industry standards
✓ Laboratory gas specifications
✓ Calibration gas requirements
3. Equipment Compatibility
High-precision equipment such as gas chromatographs, leak detectors, or vacuum systems may require ultra-pure gases.
4. Cost Efficiency
Helium is a finite and increasingly expensive resource, so purchasing unnecessarily high purity gas can increase operational costs.
Helium Supply Considerations for Industrial Buyers
Cylinder Packaging

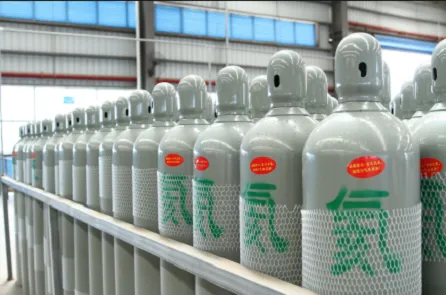

✓ High-pressure steel cylinders
✓ Tube trailers for bulk supply
✓ Liquid helium containers for cryogenic applications
Quality Control
✓ Certificate of analysis (COA)
✓ Batch traceability
✓ Gas chromatography testing reports
Supply Stability
Due to global helium shortages in recent years, stable suppliers with secure sourcing channels are increasingly important for long-term operations.
Logistics and Safety
Helium cylinders require proper handling, storage, and transportation according to industrial gas safety standards.
Conclusion
Helium gas purity plays a critical role in determining the performance, reliability, and cost efficiency of industrial processes.
Understanding the differences between industrial, high purity, and research grade helium allows buyers to select the most suitable specification for their operations.
